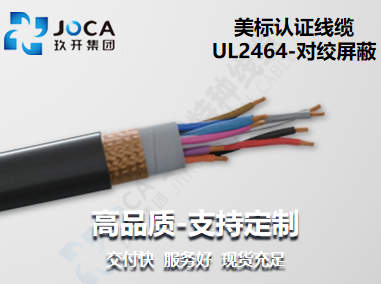

UL2464-對絞屏蔽
UL2464 - 對絞屏蔽電子線是精密信號傳輸專用多芯線材，兼具 “對絞抗串擾 + 屏蔽抗外干擾” 雙重特性，作為測量、監測和控制電纜適合在機床制造、成套設備安裝工程、電站、暖氣和空調系統、冷凍系統、辦公自動設備等的數據處理系統需屏蔽場合應用標準:UL758，UL1581及CSAC22.2NO.210.2 電纜結構1. 導體:多股精絞銅絲或鍍錫銅絲，抗腐蝕性強，符合UL 758 標準2. 絕緣:特殊硬質PVC 絕緣3. 芯線結構:對絞4. 芯線顏色:常規分色或根據客戶需求定制5. 屏蔽:鋁塑復合帶(可選)+鍍錫銅絲6. 護套:混合80度耐熱阻燃PVC，通過VW-1阻燃測試標準7. 護套顏色:黑色(RAL9005)綠色(RAL6018)橙色(RAL2003)紫色(RAL4001)特殊顏色可定制生產技術參數：1. 額定電壓:300V2. 測試電壓:2000V3. 溫度范圍:固定:-20至+80℃4. 撓曲:-5至+80℃5. 彎曲半徑:固定:4 X D 撓曲:15 X D6. 燃燒測試:通過 UL VW-1、CSA FT1及JQA F-Mark阻燃測試型號規格近似外徑 (mm)電纜近似重量 (kg/km)UL26641Px36AWG4.224.86UL26642Px36AWG5.641.83UL26643Px36AWG5.946UL26644Px36AWG6.360.01UL26645Px36AWG6.867.38UL26646Px36AWG7.425.6UL26642Px26AWG4.325.77UL26643Px26AWG5.742.07UL26644Px26AWG652.07UL26645Px26AWG6.562.87UL26646Px26AWG779.92UL26641Px24AWG4.528.33UL26642Px24AWG647.53UL26643Px24AWG6.456.64UL26644Px24AWG6.971.05UL26645Px24AWG7.481.35UL26646Px24AWG897.79UL26641Px22AWG536.59UL26642Px22AWG6.964.49UL26643Px22AWG7.373.25UL26644Px22AWG7.986.6UL26645Px22AWG8.7111.9UL26646Px22AWG9.6133.62UL26641Px20AWG5.342.98UL26642Px20AWG7.584.35UL26643Px20AWG7.9100.38UL26644Px20AWG9126.11UL26645Px20AWG9.8142.95UL26646Px20AWG10.8171.28UL26641Px18AWG5.854.04UL26642Px18AWG9.2109.58UL26643Px18AWG10.2153.09UL26644Px18AWG11.1163.65UL26645Px18AWG12.2181.83UL26646Px18AWG12.2226.56UL26641Px16AWG6.369.92UL26642Px16AWG9.8129.3UL26643Px16AWG10.6168.81UL26644Px16AWG11.5202.58UL26645Px16AWG12.8217.27UL26646Px16AWG14283.38UL26641Px15AWG6.873.62UL26642Px15AWG10.1141.06UL26643Px15AWG10.9188.55

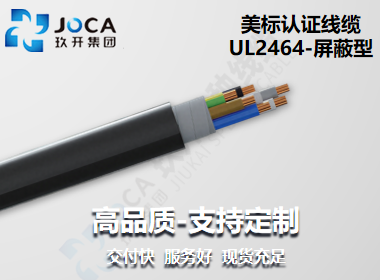

UL2464-屏蔽型
UL2464 - 屏蔽型電子線是強干擾環境專用多芯線材，良好耐熱、阻燃與耐寒性能承受一定的機械外力與耐磨性屏蔽抗煩擾特性，適用于電子設備的機內與機外配線(如辦公室計算機系統、錄音機、x光機等)可作為測量、檢測和控制電纜結合用在機床制造、成套設備安裝、電站、暖氣和空調系統、冷凍設備、辦公自動設備以及數據處理系統等場合 電纜結構1. 導體:單根或絞合裸銅或鍍錫銅線符合UL 758&UL 1581及 CSA C22.2 No.210.02 標準2. 絕緣:特殊硬質耐熱阻燃 PVC 絕緣3. 芯線顏色:任意顏色4. 屏蔽:鋁塑復合帶(可選)+鍍錫銅絲5. 護套:混合80度耐熱阻燃PVC，通過VW-1阻燃測試標準6. 護套顏色:黑(RAL9005)綠色(RAL6018)色(RAL2003)7. 紫色(RAL4001)特殊顏色可定制生技術參數：1. 額定電壓:300V2. 測試電壓:2000V3. 溫度范圍:固定:-20至+80℃4. 撓曲:-5至+80℃5. 彎曲半徑:固定:4 X D 撓曲:15 X D6. 燃燒測試:通過 UL VW-1、CSA FT1及JQA F-Mark阻燃測試型號規格近似外徑 (mm)電纜近似重量 (kg/km)UL24642×26AWG4.225.82UL24643×26AWG4.327.92UL24644×26AWG4.630.69UL24645×26AWG4.936.03UL24646×26AWG5.240.51UL24647×26AWG5.241.37UL24648×26AWG5.546.2UL24649×26AWG5.952.27UL246410×26AWG6.257.09UL246411×26AWG6.457.99UL246412×26AWG6.460.28UL246413×26AWG6.766.59UL246414×26AWG6.766.59UL246415×26AWG771.93UL246416×26AWG774.24UL246417×26AWG7.378.72UL246418×26AWG7.381.04UL246419×26AWG7.381.9UL246420×26AWG7.486.04UL246421×26AWG7.889.04UL246422×26AWG895.11UL246423×26AWG8.399.94UL246424×26AWG8.3102.25UL246425×26AWG8.5103.15UL246426×26AWG8.5105.46UL246427×26AWG8.5107.78UL246428×26AWG9.1111.75UL246429×26AWG9.1114.06UL246430×26AWG9.1116.38UL246431×26AWG9.2121.42UL246432×26AWG9.2122.83UL246433×26AWG9.2125.53UL246434×26AWG9.5130.82UL246435×26AWG9.5133.14UL246436×26AWG9.5135.45UL246437×26AWG9.5136.32UL24642×24AWG4.429.71UL24643×24AWG4.832.94UL24644×24AWG4.938.22UL24645×24AWG5.242.7UL24646×24AWG5.648.87UL24647×24AWG5.650.1UL24648×24AWG5.956.67UL24649×24AWG6.463.88UL246410×24AWG6.769.34UL246411×24AWG6.971.27UL246412×24AWG6.974.47UL246413×24AWG7.279.58UL246414×24AWG7.282.81UL246415×24AWG7.689.25UL246416×24AWG7.692.51UL246417×24AWG7.998.49UL246418×24AWG7.9101.72UL246419×24AWG7.9106.05UL246420×24AWG8.1108.67UL246421×24AWG8.2112.64UL246422×24AWG9.1116.94UL246423×24AWG9.5124.41UL246424×24AWG9.5127.89UL246425×24AWG9.6130.77UL246426×24AWG9.9134UL246427×24AWG9.9137.22UL246428×24AWG9.9142.31UL246429×24AWG9.9145.54UL246430×24AWG9.9148.77UL246431×24AWG10.8155.24UL246432×24AWG10.8162.37UL246433×24AWG10.8168.5UL246434×24AWG11.1172.76UL246435×24AWG11.1176.99UL246436×24AWG11.1179.22UL246437×24AWG11.1180.65UL24642×22AWG4.938.8UL24643×22AWG5.141.22UL24644×22AWG5.549.56UL24645×22AWG5.955.38UL24646×22AWG6.363.58UL24647×22AWG6.368.29UL24648×22AWG6.875.23UL24649×22AWG7.384.3UL246410×22AWG7.792.33UL246411×22AWG895.84UL246412×22AWG8100.69UL246413×22AWG8.3107.86UL246414×22AWG8.3112.74UL246415×22AWG9.1121.55UL246416×22AWG9.1126.43UL246417×22AWG9.6134.61UL246418×22AWG9.6139.53UL246419×22AWG9.6142.22UL246420×22AWG9.8149.04UL246421×22AWG10155.08UL246422×22AWG10.7170.16UL246423×22AWG11.2179.29UL246424×22AWG11.2184.17UL246425×22AWG11.4192.34UL246426×22AWG11.4202.26UL246427×22AWG11.9209.11UL246428×22AWG11.9214.49UL246429×22AWG11.9219.37UL246430×22AWG11.9219.37UL246431×22AWG12.3228.58UL246432×22AWG12.3232.01UL246433×22AWG12.7238.18UL246434×22AWG12.7257.18UL246435×22AWG12.7264.22UL246436×22AWG12.7289.1UL246437×22AWG12.7273.97UL24642×20AWG5.342.98UL24643×20AWG5.551.33UL24644×20AWG660.12UL24645×20AWG6.468.22UL24646×20AWG6.978.72UL24647×20AWG6.984.4UL24648×20AWG7.496.99UL24649×20AWG8101.12UL246410×20AWG8.5116.9UL246411×20AWG9.1121.65UL246412×20AWG9.1128.45UL246413×20AWG9.5137.8UL246414×20AWG9.5147.76UL246415×20AWG10155.78UL246416×20AWG10162.82UL246417×20AWG10.7178.1UL246418×20AWG10.7184.94UL246419×20AWG10.9189.92UL246420×20AWG11.1199.28UL246421×20AWG11.1208.26UL246422×20AWG12225.32UL246423×20AWG12.4249.9UL246424×20AWG12.4255.06UL246425×20AWG12.7261.12UL246426×20AWG12.7267.8UL246427×20AWG12.7274.96UL246428×20AWG13.3284.99UL246429×20AWG13.3291.83UL246430×20AWG13.3298.67UL246431×20AWG13.8317.37UL246432×20AWG13.8322.76UL246433×20AWG13.8329.8UL246434×20AWG14.3342.7UL246435×20AWG14.3349.54UL246436×20AWG14.3356.38UL246437×20AWG14.3381.05UL24642×18AWG5.852.71UL24643×18AWG6.163.74UL24644×18AWG6.576.08UL24645×18AWG7.188.47UL24646×18AWG7.6100.9UL24647×18AWG7.6109.71UL24648×18AWG8.2125.26UL24649×18AWG9.3140.52UL246410×18AWG9.8155.33UL246411×18AWG10.3167.59UL246412×18AWG10.3177.56UL246413×18AWG10.8190.78UL246414×18AWG10.8200.8UL246415×18AWG11.3221.87UL246416×18AWG11.3231.88UL246417×18AWG12.1245.61UL246418×18AWG12.1255.83UL246419×18AWG12.1263.69UL246420×18AWG12.3277.16UL246421×18AWG12.6302.01UL246422×18AWG13.5318.71UL246423×18AWG14.1341.49UL246424×18AWG14.1351.5UL246425×18AWG14.4359.63UL246426×18AWG14.4369.64UL246427×18AWG15.1379.66UL246428×18AWG15.1401.13UL246429×18AWG15.1411.14UL246430×18AWG15.1421.16UL246431×18AWG15.6438.1UL246432×18AWG15.6445.95UL246433×18AWG15.6455.97UL246434×18AWG16.3481.12UL246435×18AWG16.3492.14UL246436×18AWG16.3503.15UL246437×18AWG16.3509.01UL24642×16AWG6.467.32UL24643×16AWG6.784.05UL24644×16AWG7.3101.28UL24645×16AWG7.9119.6UL24646×16AWG8.5139.2UL24647×16AWG8.5151.45UL24648×16AWG9.6172.96UL24649×16AWG10.6199.58UL246410×16AWG11.3225.61UL246411×16AWG11.6241.21UL246412×16AWG11.6253.4UL246413×16AWG12.4275.49UL246414×16AWG12.4287.74UL246415×16AWG13.2322.26UL246416×16AWG13.2337.41UL246417×16AWG13.8355.04UL246418×16AWG13.8380.19UL246419×16AWG13.8392.44UL246420×16AWG14.2412.24UL246421×16AWG14.5430.88UL246422×16AWG15.5462.01UL246423×16AWG16.4492.23</

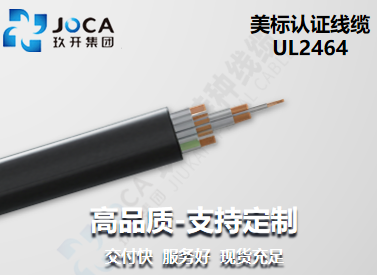

UL2464
UL2464 電子線是多芯結構設備內部專用線材，有良好的耐熱、阻燃與耐寒性，能承受一定的機械外力與耐磨性，芯線顏色鮮明，安裝方便簡單。適用于電子設備的機內與機外配線(如辦公室計算機系統、錄音機、X光機等)可作為測量、檢測和控制電纜結合用在機床制造、成套設備安裝、電站、暖氣和空調系統、冷凍設備、辦公自動設備以及數據處理系統等場合 電纜結構1. 導體:單根或絞合裸銅或鍍錫銅線符合 UL 758 & UL 1581及 CSA C22.2 No.210.02 標準2. 絕緣:特殊硬質耐熱阻燃PVC 絕緣3. 芯線顏色:任意顏色4. 護套:混合80度耐熱阻燃PVC，通過VW-1阻燃測試標準5. 護套顏色:任意顏色技術參數：1. 額定電壓:300V2. 測試電壓:2000V3. 溫度范圍:固定:-20至+80℃4. 撓曲:-5至+80℃5. 彎曲半徑:固定:4 X D 撓曲:15 X D6. 燃燒測試:通過 UL VW-1、CSA FT1及JQA F-Mark阻燃測試型號規格近似外徑（mm）電纜近似重量（kg/km）UL24642×26AWG3.717.47UL24643×26AWG3.919.87UL24644×26AWG4.123.12UL24645×26AWG4.427.11UL24646×26AWG4.731.32UL24647×26AWG4.732.43UL24648×26AWG536.57UL24649×26AWG5.442.99UL246410×26AWG5.746.92UL246411×26AWG5.848.12UL246412×26AWG5.849.42UL246413×26AWG6.153.52UL246414×26AWG6.155.02UL246415×26AWG6.460.46UL246416×26AWG6.461.99UL246417×26AWG6.665.15UL246418×26AWG6.868.1UL246419×26AWG6.869.46UL246420×26AWG6.973.24UL246421×26AWG7.175.5UL246422×26AWG7.568.89UL246423×26AWG7.868.53UL246424×26AWG7.867.98UL246425×26AWG7.969.55UL246426×26AWG7.991.27UL246427×26AWG7.992.84UL246428×26AWG8.296.97UL246429×26AWG8.2100.76UL246430×26AWG8.5104.14UL246431×26AWG8.5105.26UL246432×26AWG8.5107.35UL246434×26AWG8.2122.8UL246435×26AWG8.2125.11UL246436×26AWG8.2126.7UL24643×24AWG3.917.1UL24644×24AWG4.120.17UL24645×24AWG4.424.07UL24646×24AWG4.728.2UL24647×24AWG6.138.93UL24648×24AWG6.147.14UL24649×24AWG6.456.46UL246410×24AWG6.968.7UL246411×24AWG6.461.15UL246412×24AWG6.463.09UL246413×24AWG6.770.43UL246414×24AWG6.770.63UL246415×24AWG777.34UL246416×24AWG779.68UL246417×24AWG7.485.78UL246418×24AWG7.488.03UL246419×24AWG7.489.46UL246420×24AWG7.694.77UL246421×24AWG7.798.61UL246422×24AWG8.2106.35UL246423×24AWG8.5111.26UL246424×24AWG8.5111.94UL246426×24AWG8.9119.3UL246427×24AWG8.9123.16UL246428×24AWG8.9135.09UL246429×24AWG8.4137.3UL246430×24AWG8.4140.02UL246431×24AWG8.7147.85UL246432×24AWG8.7149.98UL246433×24AWG10.3154.21UL246435×24AWG10.3167.44UL246436×24AWG10.3169.75UL246437×24AWG10.6173.44UL24642×22AWG4.427.43UL24643×22AWG4.632.17UL24644×22AWG538.75UL24645×22AWG5.446.92UL24646×22AWG5.851.37UL24647×22AWG6.257.7UL24648×22AWG6.865UL24649×22AWG7.274.17UL246410×22AWG7.278.72UL246411×22AWG7.485.67UL246412×22AWG7.488.57UL246413×22AWG7.896.27UL246414×22AWG7.899.63UL246415×22AWG8.2109.01UL246416×22AWG8.2112.43UL246417×22AWG9121.69UL246418×22AWG9124.13UL246419×22AWG9127.34UL246420×22AWG9.2138.88UL246421×22AWG9.5148.8UL246422×22AWG10.2155.46UL246423×22AWG10.6164.3UL246424×22AWG10.6169.23UL246425×22AWG10.9177.54UL246426×22AWG10.9178.32UL246427×22AWG10.9181.62UL246428×22AWG11.2189.01UL246429×22AWG11.2192.78UL246430×22AWG11.2197.84UL246431×22AWG11.9211.45UL246432×22AWG11.9214.68UL246433×22AWG11.9219.84UL246434×22AWG12.4229.78UL246435×22AWG12.4234.08UL246436×22AWG12.4238.85UL246437×22AWG12.4251.84UL24643×20AWG4.833.92UL24642×20AWG540.47UL24644×20AWG5.448.31UL24645×20AWG5.958.8UL24646×20AWG6.468.34UL24647×20AWG6.473.02UL24648×20AWG6.888.16UL24649×20AWG7.596.62UL246410×20AWG8108.39UL246411×20AWG8.2112.05UL246412×20AWG8.2116.47UL246413×20AWG8.6126.72UL246414×20AWG8.6131.63UL246415×20AWG9.1143.8UL246416×20AWG9.1148.88UL246417×20AWG9.9163.88UL246418×20AWG9.9173.32UL246419×20AWG9.9178.2UL246420×20AWG10.4188.1UL246421×20AWG10.6196.59UL246422×20AWG11.2204.26UL246423×20AWG11.9220.39UL246424×20AWG11.9227.23UL246425×20AWG12.2231.8UL246426×20AWG12.2236.48UL246427×20AWG12.2245.48UL246428×20AWG12.6254.58UL246429×20AWG12.6261.42UL246430×20AWG12.6268.26UL246431×20AWG13.4285.09UL246432×20AWG13.4290.48UL246433×20AWG13.8297.32UL246434×20AWG13.8309.14UL246435×20AWG13.8313.98UL246436×20AWG13.8322.2UL246437×20AWG13.8327.52UL24642×18AWG5.543.91UL24643×18AWG6.553.39UL24644×18AWG6.565.61UL24645×18AWG7.179.28UL24646×18AWG7.190.67UL24647×18AWG7.699.49UL24648×18AWG8.4113.96UL24649×18AWG8.3126.75UL246410×18AWG8.3133.44UL246411×18AWG8.6162.44UL246412×18AWG8.6169.25UL246413×18AWG10.1183.86UL246414×18AWG10.1191.41UL246415×18AWG10.8213.53UL246416×18AWG10.8221.02UL246417×18AWG11.3236.19UL246418×18AWG11.3244.92UL246419×18AWG11.3252.04UL246420×18AWG11.6270.85UL246421×18AWG12.1283.04UL246422×18AWG12.8293.61UL246423×18AWG13.6307.58UL246424×18AWG13.6317.59UL246425×18AWG13.9325.68UL246426×18AWG13.9335.69UL246427×18AWG13.9345.71UL246428×18AWG14.3358.54UL246429×18AWG14.3368.65UL246430×18AWG14.3378.57UL246431×18AWG15398.57UL246432×18AWG15408.59UL246433×18AWG15418.28UL246434×18AWG15.6434.6UL246435×18AWG15.6442.31UL246436×18AWG15.6444.3UL246437×18AWG15.6462.17UL24642×16AWG5.993.31UL24643×16AWG6.273.52UL24644×16AWG6.891.72UL24645×16AWG7.4109.36UL24646×16AWG8123.03UL24647×16AWG8141.27UL24648×16AWG8.1166.38UL24649×16AWG9.9198.38UL246410×16AWG10.8219.96UL246411×16AWG11.1237.06UL246412×16AWG11.1245.61UL246413×16AWG11.7275.18UL246414×16AWG11.7283.92UL246415×16AWG12.5308.18UL246416×16AWG12.5320.81UL246417×16AWG13.3343.27UL246418×16AWG13.3361.06UL246419×16AWG13.3373.31UL246420×16AWG13.6393.02UL246421×16AWG14410.62UL246422×16AWG15422.36UL246423×16AWG15445.22UL246424×16AWG15.7460.37UL246425×16AWG16.2480.23<tab

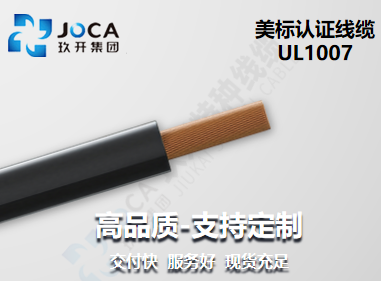

UL1007
UL1007 電子線是低壓電子設備內部連線專用線材，導體采用裸銅或鍍錫銅材質，外覆聚氯乙烯絕緣層，該線材具備耐油、防霉、抗酸堿、防潮等多重特性，能抵御多種復雜工況影響，保障線路穩定性。用于一般電子、電器設備內部連線,當暴露于有油環境時,不得超過 60℃或 80℃此線型耐油性可選應用標準:UL758，UL1581及CSAC22.2 No.210.2 電纜結構1. 導體:使用32-16AWC單根或絞合裸銅或鍍錫銅線2. 絕緣:聚氯乙烯絕緣3. 芯線顏色:任意顏色技術參數：1. 額定電壓:300V2. 測試電壓:2000V3. 額定溫度:80℃4. 燃燒測試:通過 UL VW-1及 CSA FT1 垂直耐燃測試型號規格近似外徑 (mm)電纜近似重量 (kg/km)UL100730AWG1.061.74UL100728AWG1.122.07UL100726AWG1.242.65UL100725AWG1.273.09UL100724AWG1.373.81UL100723AWG1.424.27UL100722AWG1.525.18UL100721AWG1.585.85UL100720AWG1.77.15UL100719AWG1.828.65UL100718AWG1.9410.33UL100717AWG2.0812.41UL100716AWG2.2715.56
